| Terminal（㎟） | 0.3 | 0.5 | 1.25 | 2.0 | 3.5 | 5.5 | 8.0 | 14.0 | 22.0 | 38.0 | 60.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TP-2 (JIS) | 〇 | 〇 | |||||||||
| TP-3 | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-5 (JIS) | 〇 | 〇 | 〇 | ||||||||
| TP-5S | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-5M | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-8 (JIS) | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-8P (JIS) | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-14 (JIS) | 〇 | 〇 | 〇 | 〇 | 〇 | ||||||
| TP-22 (JIS) | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-38 (JIS) | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-60 (JIS) | 〇 | 〇 | 〇 | 〇 | |||||||
| TP-R (JIS) | E-L・E-M・E-S | ||||||||||
| TP-RS (JIS) | E-M・E-S | ||||||||||

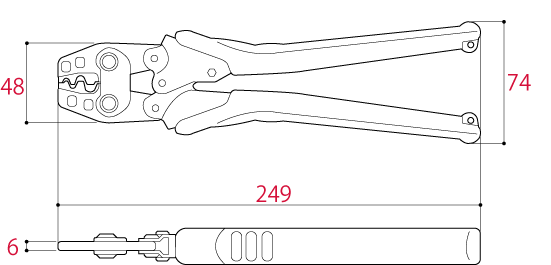

| Size[mm] | Weight [g] | EAN-code (4952269) |
||||
| Overall length | Head width | Head thickness | Handle width | |||
| TP-8 | 249 | 48 | 6 | 74 | 410 | 113341 |
| Terminal Size | |||
| JIS standard ㎟ | IEC・DIN standard ㎟ | American Wire Gauge | Crimped Mark |
| 1.25 | 1.5 | 16 | 1 |
| 2 | 2.5 | 14 | 2 |
| 5.5 | 6 | 10 | 5 |
| 8 | 10 | 8 | 8 |
