Crimping Tool For Non-Insulated Terminals

TP-22 Capacity IEC/DIN:6/10/16/24㎟ AWG:10/8/6/4 JIS:5.5/8/14/22㎟ JIS


Click pictures to enlarge

Learn more about features of TSUNODA's crimping tools!
Crimping Tool Usable Terminals
Terminal(㎟) 0.3 0.5 1.25 2.0 3.5 5.5 8.0 14.0 22.0 38.0 60.0
TP-2 (JIS)
TP-3
TP-5 (JIS)
TP-5S
TP-5M
TP-8 (JIS)
TP-8P (JIS)
TP-14 (JIS)
TP-22 (JIS)
TP-38 (JIS)
TP-60 (JIS)
TP-R (JIS) E-L・E-M・E-S
TP-RS (JIS) E-M・E-S
Specifications
  • Material | Alloy steel
  • Head hardness [HRC] | 42~46
  • Handle part hardness [HRC] | 46~49
  • Handle cover | Elastomeric molded resin grips
Size[mm]Weight
[g]
EAN-code
(4952269)

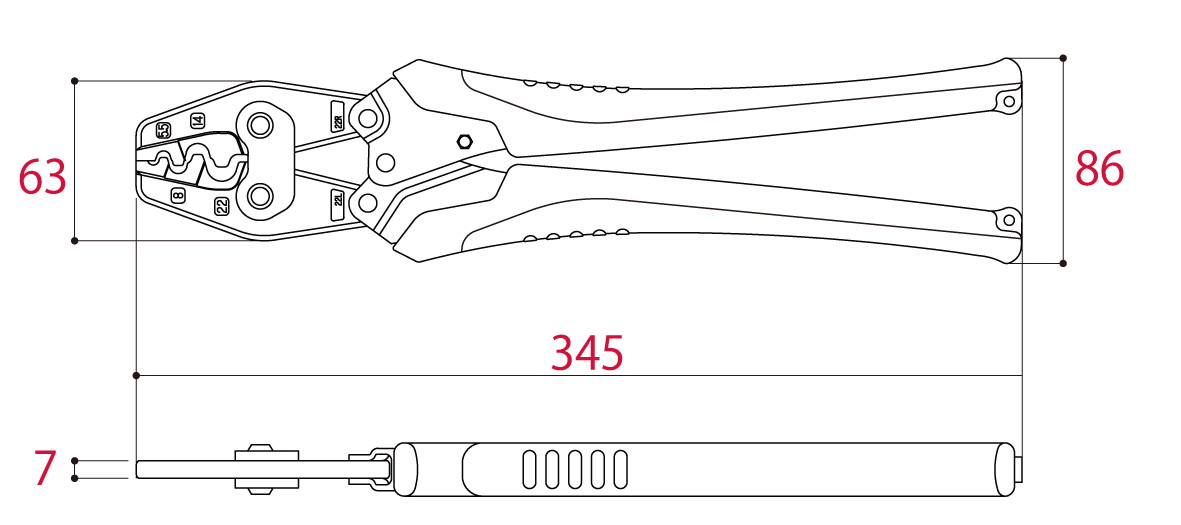

Overall lengthHead widthHead thicknessHandle width
TP-2234563786760114263
Terminal Size
JIS standard ㎟IEC・DIN standard ㎟American Wire GaugeCrimped Mark
5.56105
81088
1416614
2224422
