Crimping Tool For Non-Insulated Terminals

TP-5M Capacity IEC/DIN:1.5/2.5/4/6㎟ AWG:16/14/12/10 JIS:1.25/2/3.5/5.5㎟ new!
  • Small and Light Weighted type.
  • Crimping up to 6sq(IEC standard)/ AWG10 cables with one side hand.
  • Learn more about features of TSUNODA's crimping tools!

    Features

    BOTH SIDE COLORED SIZE MARKS

    Colored size marks help you to check the size of crimping dies even in the room with poorly lighted, and improve your work efficiency.

    TOGGLE MECHANISM

    Toggle mechanism reduces required loads for each stroke of gear.

    CRIMP COMPLETION CHECKING FUNCTION

    Handles don't open until crimping done.

    SLIPLESS! MOLDED ELASTOMER GRIPS

    Soft texture elastomer grip reduces fatigue of continuous crimping works.

    AND MORE!

    Clear crimped mark. Safety strap holes on both grips!

    Specifications
    • Material | Alloy steel
    • Head hardness [HRC] | 42~48
    • Handle part hardness [HRC] | 43~47
    • Handle cover | Elastomeric molded resin grips
    Size[mm]Weight
    [g]
    EAN-code
    (4952269)

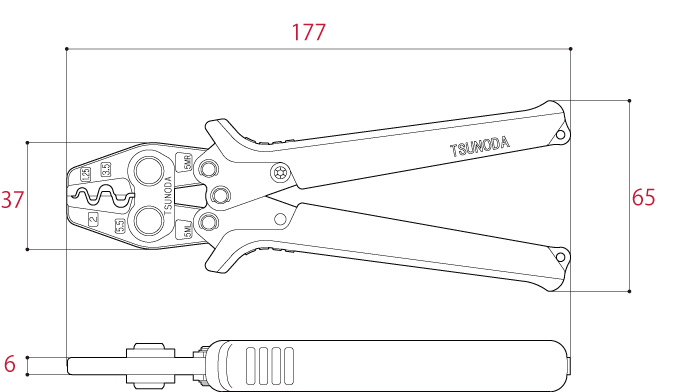

    Overall lengthHead widthHead thicknessHandle width
    TP-5M17737665220113686
    Terminal Size
    JIS standard ㎟IEC・DIN standard ㎟American Wire GaugeCrimped Mark
    1.251.5161
    22.5142
    3.54123
    5.56105
