Side Cutting Pliers Europe-type

150mm TP-150HG / 175mm TP-175HG / 200mm TP-200HG

Click pictures to enlarge

For cutting wire, bending metal sheets.
Oval serration part is comfortable for holding hex nuts.
Comfortable elastomer molded grips.
PVC dipping grip version: TP-150/175/200

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment
Handle cover | Elastomer molded grips
Surface treatment | Anti-rust oils

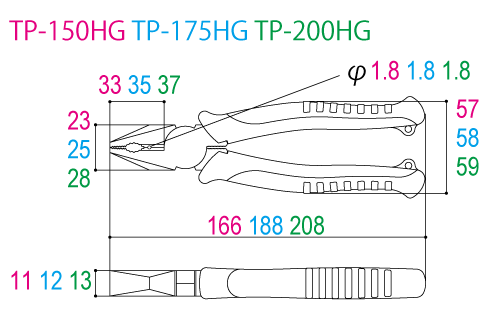

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Hole diameter	Weight [g]	EAN-code (4952269)
TP-150HG	166	23	11	57	33	1.8	205	110784
TP-175HG	188	25	12	58	35	1.8	275	110791
TP-200HG	208	28	13	59	37	1.8	365	110807

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
TP-150HG	1.6	2.6	3.2	8.0
TP-175HG	1.8	2.6	3.6	8.0
TP-200HG	2.6	3.2	4.0	8.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
