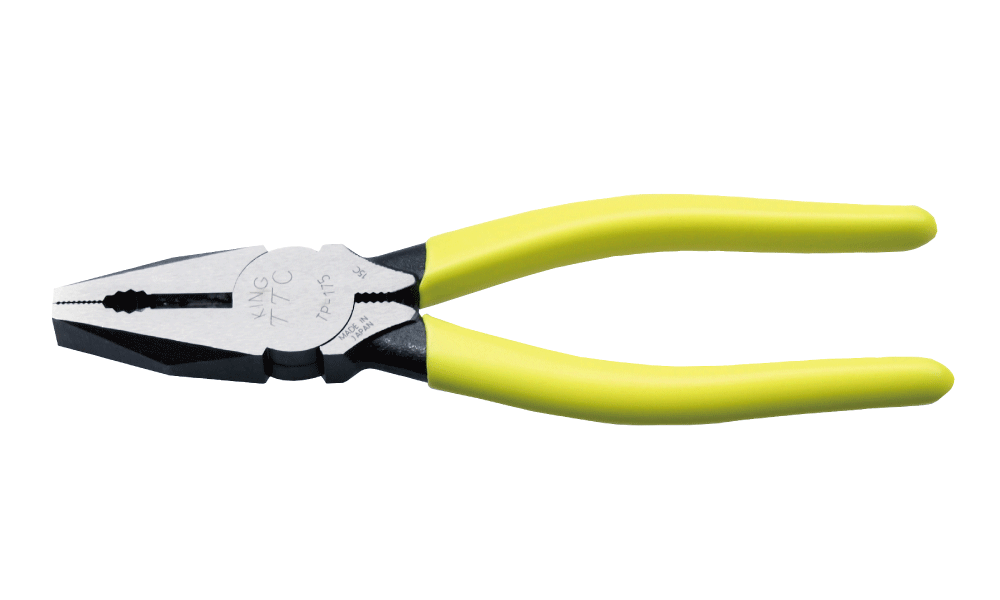

150mm TP-150 / 175mm TP-175 / 200mm TP-200
Click pictures to enlarge

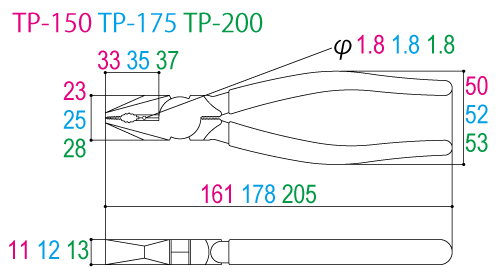

| Size[mm] | Weight [g] | EAN-code (4952269) |
||||||
| Overall length | Head width | Head thickness | Handle width | Nose length | Hole diameter | |||
| TP-150 | 161 | 23 | 11 | 50 | 33 | 1.8 | 190 | 106015 |
| TP-175 | 178 | 25 | 12 | 52 | 35 | 1.8 | 255 | 106022 |
| TP-200 | 205 | 28 | 13 | 53 | 37 | 1.8 | 350 | 106039 |
| Cutting capacity (φmm) | Stainless | Soft iron | Copper | Stranded copper wire [mm²] |
| TP-150 | 1.6 | 2.6 | 3.2 | 8.0 |
| TP-175 | 1.8 | 2.6 | 3.6 | 8.0 |
| TP-200 | 2.6 | 3.2 | 4.0 | 8.0 |
Note: Do not use to cut harder wire or anything above it rated the capacity.
