Stainless Cutting Pliers

125mm SCN-125 / 140mm SCN-140 Spring

Click the picture to enlarge

Newly developed patented spring works as a locker preventing the head of pliers opening during in your tool box.
Suitable for cutting thin soft metal wire such as copper, aluminium and brass. For electronic works, accessory making and so on.
Flat edge can cut target cleanly.
Made of high quality stainless. Hardly get rusty.

Check here to see how to use the spring lock!

Stainless Pliers with Lock Spring Series : 6 type 7 items are available.

SKN-140
Stainless Single Edge Plastic Cutter

SPN-125
Stainless Cutting Pliers for Plastics

SCN-125/140
Stainless Cutting Pliers (125mm/140mm)

SSN-125
Stainless Cutting Pliers Slender-type

SNB-125
Stainless Cutting Pliers Bent-type

SCP-140
Fine Nose Lead Pliers

SPB-140
Bent Nose Lead Pliers

Specifications

Material | Stainless
Edge hardness [HRC]| 49～55
Spring | Spring with lock function (PAT.)
Handle cover | Molded elastomer grips

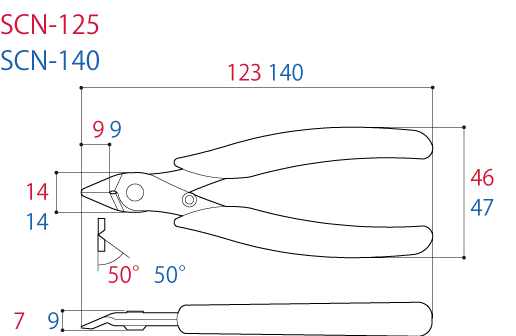

	Size(mm)						Weight (g)	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Sarpening angle	Weight (g)	EAN-code (4952269)
SCN-125	123	14	7	46	9	50°	50	113631
SCN-140	140	14	9	47	9	50°	70	114072

Cutting capacity (mm)	Plastic	Soft Iron	Copper	Aluminium	Brass	Strand wire
SCN-125	3.0	0.9	2.0	2.0	1.0	2.0㎟
SCN-140	4.0	1.6	2.6	3.5	2.0	3.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
