Long Nose Pliers

150mm PRP-150HGS JISSpring

Click pictures to enlarge

For cutting wire and bending metal plates.
Oval serration part is comfortable for holding hex nuts.
Coil spring helps continuous work.
PVC molded grips & w/o spring version: PRP-150HG

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Handle cover | PVC molded grips
Surface treatment | Anti-rust oils

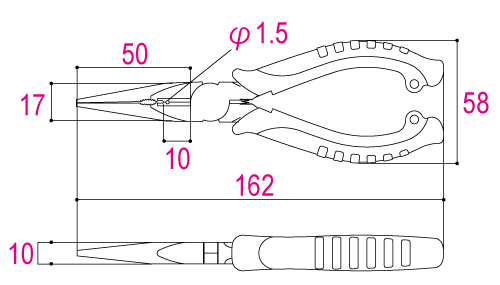

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Hole diameter	Weight [g]	EAN-code (4952269)
PRP-150HGS	162	17	10	58	50	10	1.5	140	110814

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
PRP-150HGS	1.2	2.0	3.2	2.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
