Long Nose Pliers

150mm PRP-150HG JIS

Click pictures to enlarge

For cutting wire and bending metal plates.
Oval serration part is comfortable for holding hex nuts.
Elastomer molded grips & spring version: PRP-150HGS

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Handle cover | PVC molded grips
Surface treatment | Anti-rust oils

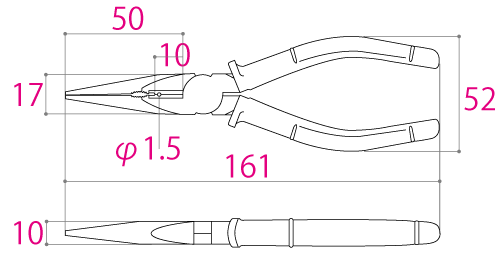

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Hole diamter	Weight [g]	EAN-code (4952269)
PRP-150HG	161	17	10	52	50	10	1.5	130	110890

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
PRP-150HG	1.2	2.0	3.2	2.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
