Diagonal Cutting Pliers

130mm CN-130N / 160mm CN-160N JISnew!

Click pictures to enlarge

For copper and iron wires.
Diagonal Cutter 4 types & 3 sizes
[Normal] CN-130N,CN-160N,CN-175N
[w/ Stripper] CN-130,CN-160
[w/ Spring] CN-130NS,CN-160NS
[w/ Stripper & Stripper] CN-130S,CN-160S

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

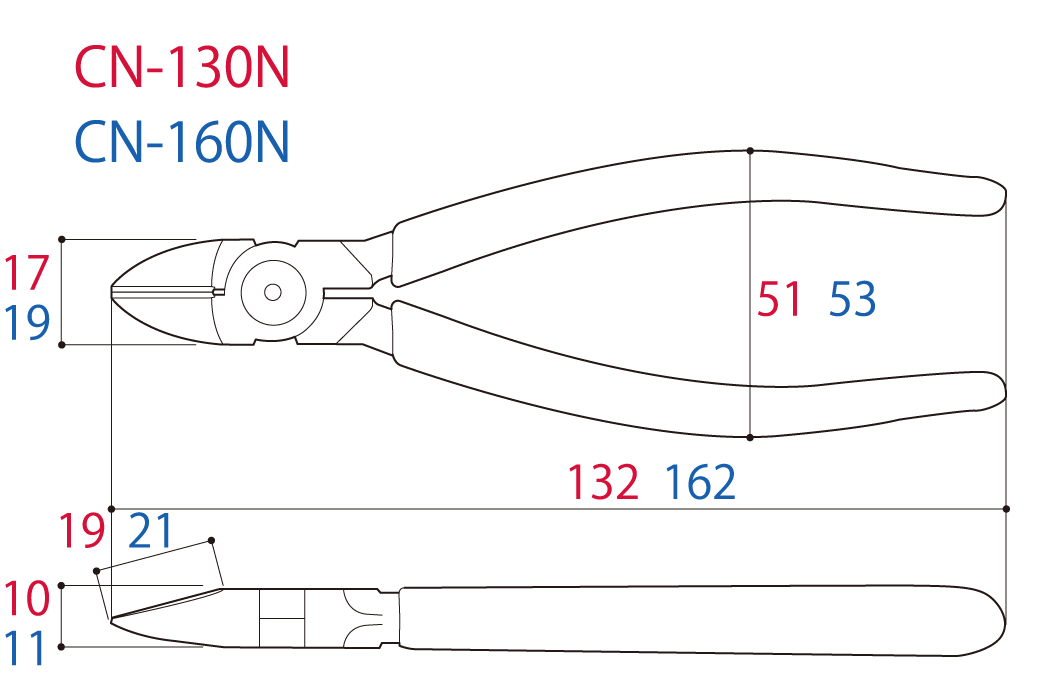

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
CN-130N	132	17	10	51	19	105	114171
CN-160N	162	19	11	53	21	160	114201

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
CN-130N	1.2	1.8	2.6	2.0
CN-160N	1.6	2.0	3.2	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
