Diagonal Cutting Pliers (w/ Spring & Stripper)

125mm CN-125S / 150mm CN-150S Spring

Click pictures to enlarge

Coil spring loaded.
Suitable for continuous cutting works.
For copper and iron wires.
With a stripping hole.
[Normal] CN-125N,CN-150N,CN-175N
[w/ Stripper] CN-125,CN-150
[w/ Spring] CN-125NS,CN-150NS
[w/ Stripper & Stripper] CN-125S,CN-150S
Elastomer molded grip version : CN-130HGS/160HGS

Specifications

Material | Carbon steel for machinery（S58C）
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 58～64
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

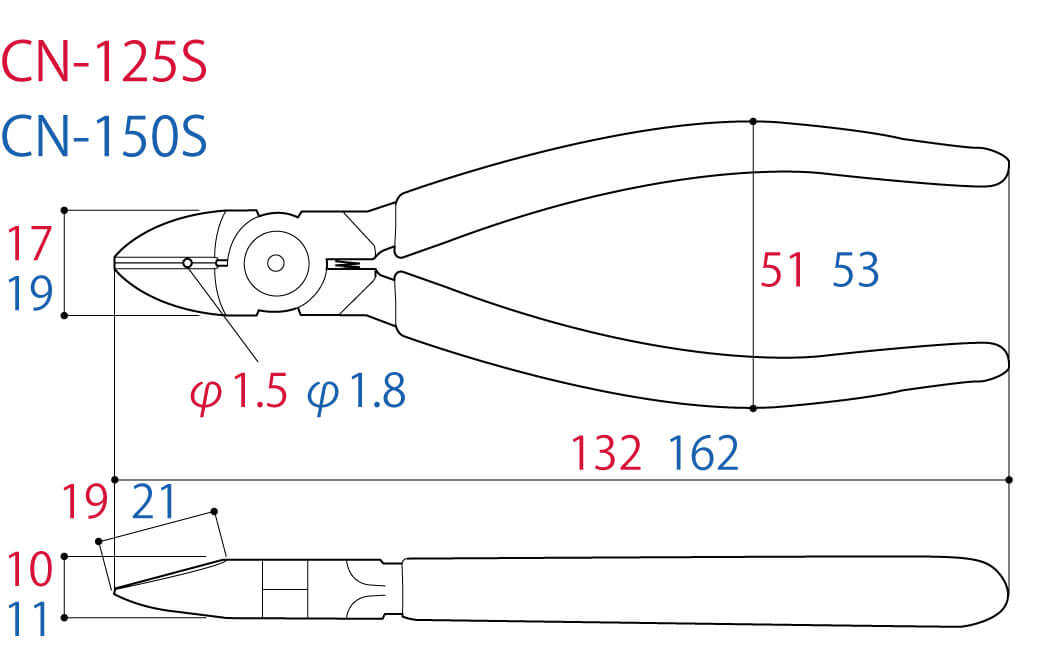

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Cutting edge length	Hole diameter	Weight [g]	EAN-code (4952269)
CN-125S	132	17	10	51	19	1.5	105	102215
CN-150S	162	19	11	53	21	1.8	160	102253

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
CN-125S	1.2	1.8	2.6	2.0
CN-150S	1.6	2.0	3.2	5.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
