Angled Edge Cutter (90°)

150mm AN-150B Spring

Click pictures to enlarge

  • Coil spring helps continuous cutting works.
  • For soft wire like copper.
  • 45° angled version : AN-150A
Specifications
  • Material | Carbon steel for machinery(S58C)
  • Heat Treatment | Oxide-free heat treatment
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils

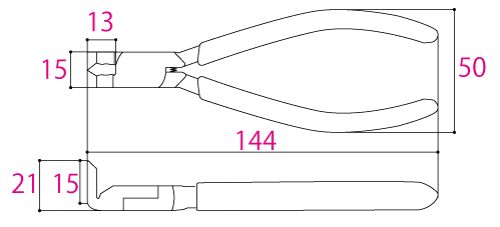

Size[mm]Weight
[g]
EAN-code
(4952269)
Overall lengthHead widthHead thicknessHandle widthCutting edge lengthBlade angle
AN-150B1441521501590°135107104
Cutting capacity (φmm)Copper
AN-150B2.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
