Angled Edge Cutter (45°)

150mm AN-150A Spring

Click pictures to enlarge

  • Coil spring helps continuous cutting works.
  • For soft wire like copper.
  • 90° angled version : AN-150B
Specifications
  • Material | Carbon steel for machinery(S58C)
  • Heat Treatment | Oxide-free heat treatment
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils
Size[mm]Weight
[g]
EAN-code
(4952269)

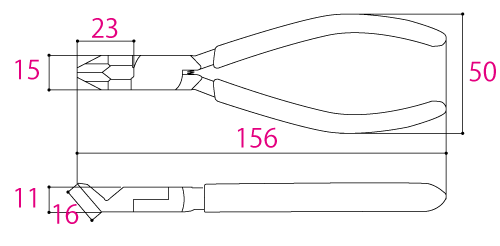

Overall lengthHead widthHead thicknessHandle widthCutting edge lengthBlade angle
AN-150A1561511501645°130107098
Cutting capacity (φmm)Copper
AN-150A2.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
