■King TTC Specialized tools

see this brand products

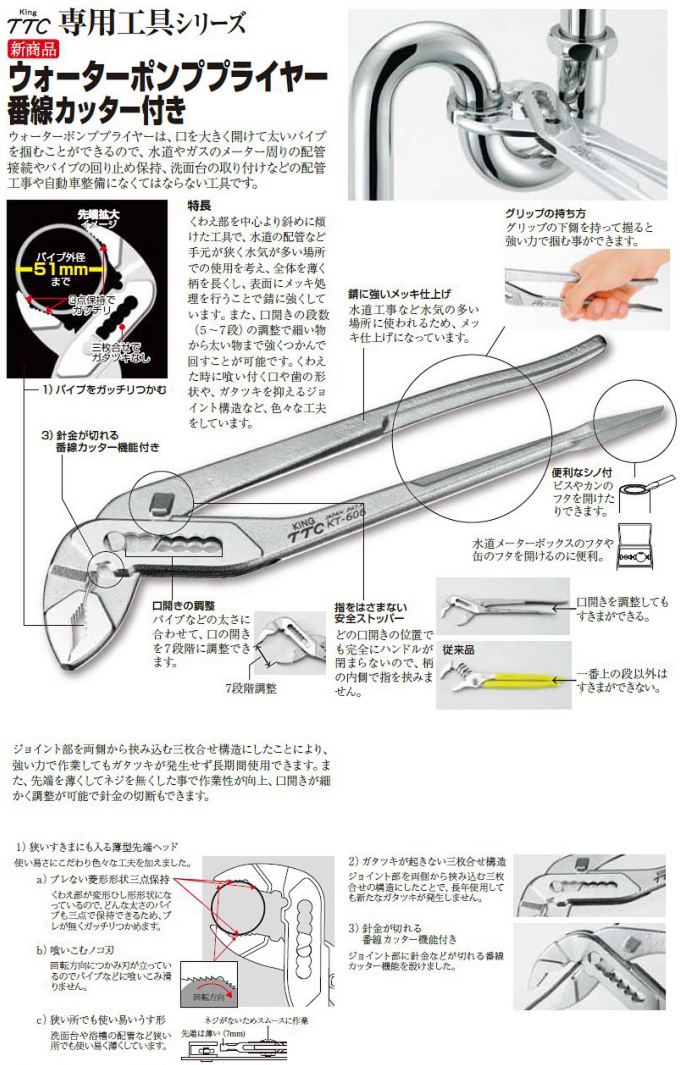

BOX-JOINT WATER PUMP PLIERS WITH A SCREWDRIVER

250mm KT-606

Holding pipes strongly with 3 points of jaw serration. Box joint structure hardly rattles.

PART #	ORVERALL LENGTH (mm)	JAW WIDTH (mm)	JAW THICKNESS (mm)	HANDLE WIDTH (mm)	WEIGHT (g)	JAN-code (4952269)
KT-606	250	51	7	43	340	110951
CUTTING CAPACITY (mm)	SOFT IRON WIRE	USABLE RANGE (mm)	OUTSIDE DIAMETER OF PIPE
KT-606	φ2.6mm		6～51

■king TTC HARD

see this brand products

GROOVE JOINT PLIERS

250mm WP-250 JIS

300mm WP-300 JIS

Groove joint type provides strong torque and doesn't slip.

PART #	OVERALL LENGTH (mm)	JAW WIDTH (mm)	JAW THICKNESS (mm)	HANDLE WIDTH (mm)	WEIGHT (g)	JAN-code (4952269)
WP-250	255	49	10	46	330	106084
WP-300	304	54	11	50	500	106091
	JAW OPENING(mm)			JAW DEPTH(mm)
WP-250	38			37
WP-300	56			41

WATER PUMP PLIERS (w/o groove)

250mm WP-250S JIS

PART #	OVERALL LENGTH (mm)	JAW WIDTH (mm)	JAW THICKNESS (mm)	HANDLE WIDTH (mm)	WEIGHT (g)	JAN-code (4952269)
WP-250S	255	49	10	46	340	106107
	JAW OPENING(mm)			JAW DEPTH(mm)
WP-250S	38			37

GROOVE JOINT PLIERS WITH SCREWDRIVER

250mm WP-250D

Screwdriver on the tip of handle is convenient to open cans

PART #	OVERALL LENGTH (mm)	JAW WIDTH (mm)	JAW THICKNESS (mm)	HANDLE WIDTH (mm)	WEIGHT (g)	JAN-code (4952269)
WP-250D	255	49	10	46	340	106114
	JAW OPENING(mm)			JAW DEPTH(mm)
WP-250D	38			37
