Thin Blade Plastic Cutter

120mm TN-120 Spring

Click pictures to enlarge

For extremely fine cutting works of plastics.
Exclusive use for plastics.
Thin and precise edge designed for cutting plastic molding gates cleanly.
Compact head reaches target inside narrow space.

Specifications

Material | Alloy steel
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Edge hardness [HRC] | 58～64
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

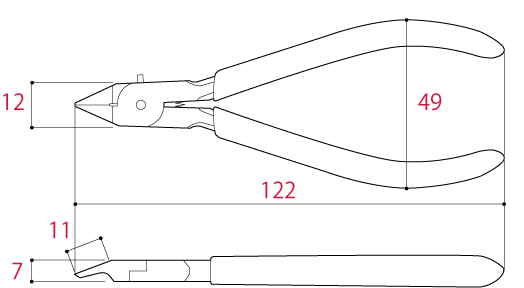

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
TN-120	122	12	7	49	11	60	111101

Cutting capacity (φmm)	Only for plastic
TN-120	3.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
