End Cutting Pliers

120mm TM-14 SpringBOX JOINT

Click pictures to enlarge

For building miniature models and handicrafts.
Convenient for cutting or pulling out protrusions on the surface like nails.

	United States	Canada
TM-14

Features of Trinity series products

Box joint

Long-life stability, none-backlash.

Leaf springs

Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips

Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Hardness | 54～62
Spring | Leaf springs
Handle cover | Elastomeric double molded resin grips

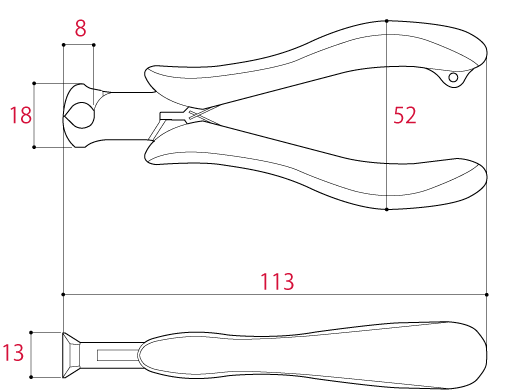

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Jaw depth	Weight [g]	EAN-code (4952269)
TM-14	113	18	13	52	8	70	110623

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
TM-14	0.9	1.2	2.0	2.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
