Bent Nose Pliers

150mm TM-05 SpringBOX JOINT

Click pictures to enlarge

  • Bent type nose is suitable for works on the desk.

Features of Trinity series products

Box joint

Long-life stability, none-backlash.

Leaf springs

Long-life and high durability. Adjustable resilience.

Comfortable elastomeric double molded resin grips

Using eco-friendly elastomer resin which does not emit dioxin when it is burned. Original designed grip realized ideal weight balance and work efficiency improvement.

Specifications
  • Material | Alloy steel
  • Heat Treatment | Induction hardening on edge
  • Hardness | 54~62
  • Spring | Leaf springs
  • Handle cover | Elastomeric double molded resin grips
Size[mm]Weight
[g]
EAN-code
(4952269)

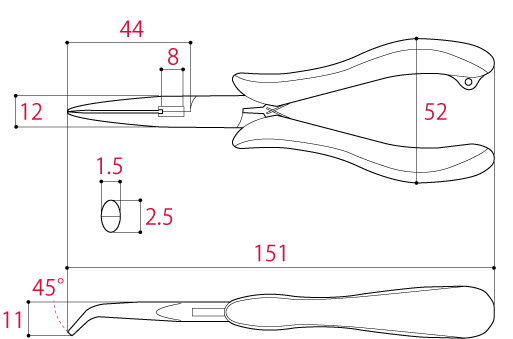

Overall lengthHead widthHead thicknessHandle widthNose lengthEdge lengthTip sizeNose angle
TM-051511111524481.5x2.545°75110265
Cutting capacity
(φmm)
Soft ironCopper
TM-050.81.2

Note: Do not use to cut harder wire or anything above it rated the capacity.
