Slim Plastic Cutter Flat-blade

145mm SNP-145F / 165mm SNP-165F Spring

Click pictures to enlarge

Slim head reaches target inside narrow space.
Flat blade is suitable for cutting targets on the curved surface.
Long-life torsion spring loaded.

Specifications

Material | Alloy steel
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Edge hardness [HRC] | 58～64
Spring | Torsion spring
Handle cover | PVC dipping

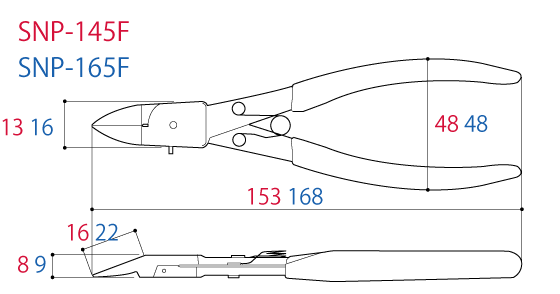

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
SNP-145F	153	13	8	48	16	100	107067
SNP-165F	168	16	9	48	22	130	107074

Cutting capacity (φmm)	Plastic
SNP-145F	4.0
SNP-165F	5.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
