Box Joint Slant Edge Cutting Pliers

125mm PW-351DG / 150mm PW-352DG BOX JOINTJIS

Click pictures to enlarge

Comfortable elastomeric double molded resin grips.
Suitable for cutting targets at the closest point from walls.
Long life, backlash-less box joint structure.
Stripping hole loaded on the edge.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Edge hardness [HRC] | 56～62
Handle cover | Elastomeric double molded resin grips

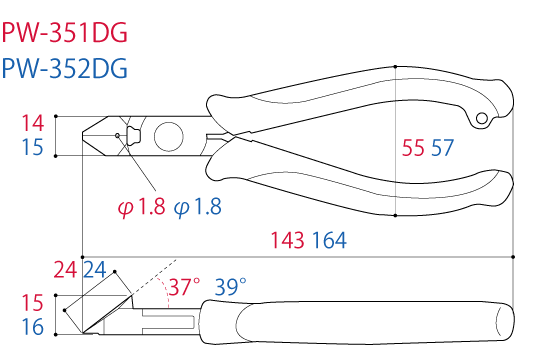

	Size[mm]							Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Head angle	Hole diameter	Weight [g]	EAN-code (4952269)
PW-351DG	143	14	15	55	24	37°	1.8	110	110432
PW-352DG	164	15	16	57	24	39°	1.8	155	110449

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Stranded copper wire [mm²]
PW-351DG	0.6	1.2	2.0	2.0
PW-352DG	0.6	1.2	2.6	3.5

Note: Do not use to cut harder wire or anything above it rated the capacity.
