Power Thin Blade Cutting Pliers

225mm PW-305DG ECCENTRICCRIMPING

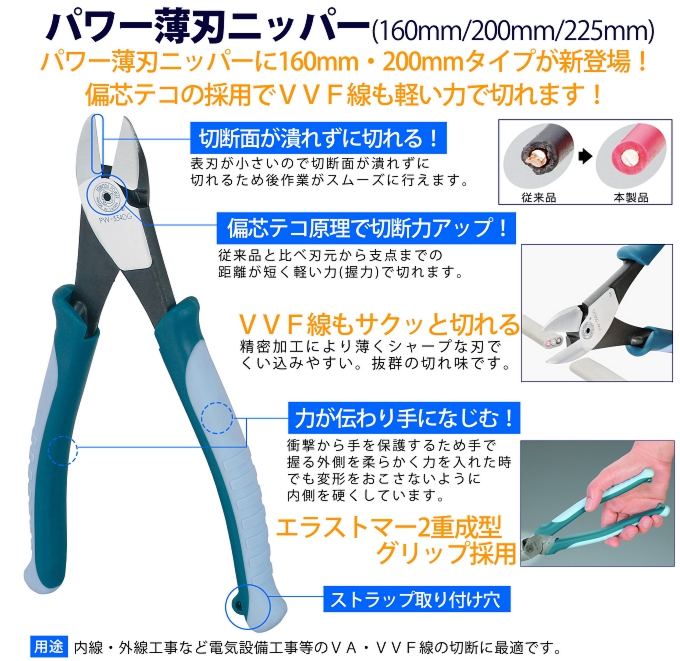

Click pictures to enlarge

Cutting 3 core flat cable (VVF cable) easily and cleanly.
Eccentric structure reduces the load required for cutting.
Comfortable elastomeric double molded resin grips.
Improved handle shape.
Crimping die loaded. *This is not an exclusive crimping tool.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Edge hardness [HRC] | 58～64
Handle cover | Elastomeric double molded resin grips

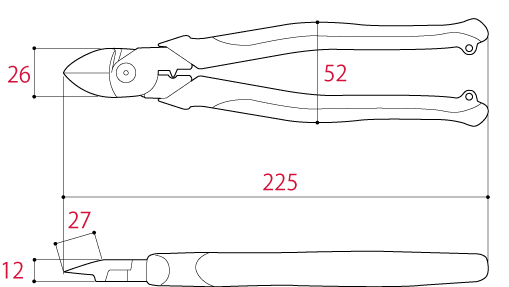

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
PW-305DG	225	26	12	52	27	340	113105

Cutting capacity (φmm)	VVF cable	Soft iron	Copper	IV wire [mm²]
PW-305DG	2.6x3cores	3.2	5.0	22

Note: Do not use to cut harder wire or anything above it rated the capacity.
