130mm PW-301 / 160mm PW-302 ECCENTRICJISnew!
Click pictures to enlarge

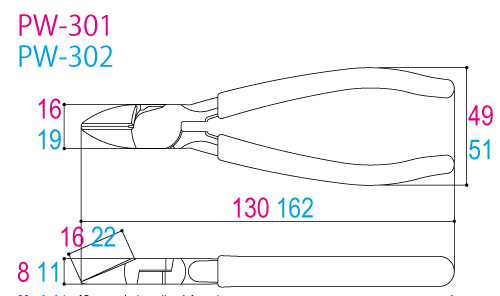

| Size[mm] | Weight [g] | EAN-code (4952269) |
|||||
| Overall length | Head width | Head thickness | Handle width | Edge length | |||
| PW-301 | 130 | 16 | 8 | 49 | 16 | 90 | 114706 |
| PW-302 | 162 | 19 | 11 | 51 | 22 | 155 | 114713 |
| Cutting capacity (φmm) | Stainless | Soft iron | Copper | Stranded copper wire [mm²] |
| PW-301 | 1.6 | 2.6 | 3.2 | 5.5 |
| PW-302 | 1.6 | 2.6 | 3.2 | 5.5 |
Note: Do not use to cut harder wire or anything above it rated the capacity.
