Side Cutting Pliers

200mm PCP-200 CRIMPING

Click pictures to enlarge

  • For electric works.
  • For cutting wire, bending metal sheets and so on.
  • Crimping die loaded. *This is not an exclusive crimping tool.
Specifications
  • Material | Carbon steel for machinery(S58C)
  • Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
  • Body hardness [HRC] | 42~50
  • Edge hardness [HRC] | 58~64
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils

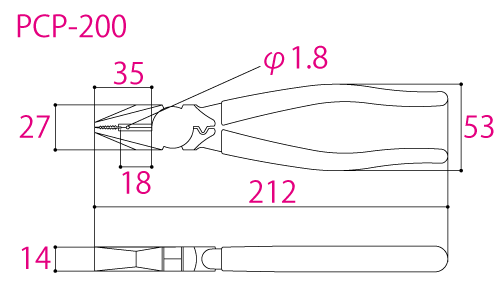

Size[mm]Weight
[g]
EAN-code
(4952269)
Overall lengthHead widthHead thicknessHandle widthEdge lengthNose lengthHole diameter
PCP-20021227145318351.8370101089
Cutting capacity (φmm)StainlessSoft ironCopperStranded copper wire [mm²]
PCP-2002.63.24.08.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
