Brass Cutter

230mm PC-1300 (Round blade) / PC-1400 (Flat blade) Spring

Click pictures to enlarge


PC-1300PC-1400
  • For cutting soft metal such as brass with ease.
  • Suitable for accessory making.
  • Also suitable for cutting apart parts from the lost wax casting trees.
Specifications
  • Material | Alloy steel
  • Blade hardness [HRC] | 56~59
Size[mm]Weight
[g]
EAN-code
(4952269)

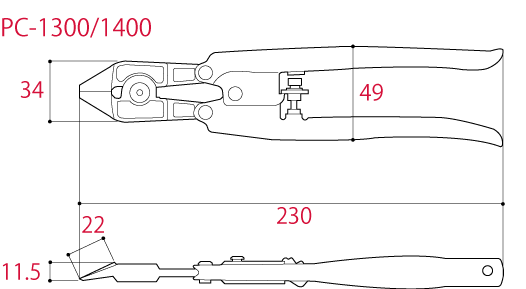

Overall lengthHead widthHead thicknessHandle widthEdge length
PC-13002303411.54922255113044
PC-14002303411.54922255113051
Cutting capacity (φmm)CopperBrass
PC-13005.05.0
PC-14005.05.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
