Snap Ring Pliers for Small External Rings

125mm MSE-125 Spring


Click pictures to enlarge

  • For the smallest external snap rings.
Specifications
  • Material | Carbon steel for machinery
  • Heat Treatment | Oxide-free heat treatment
  • Hardness | 42~46
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils
Size[mm]Weight
[g]
EAN-code
(4952269)

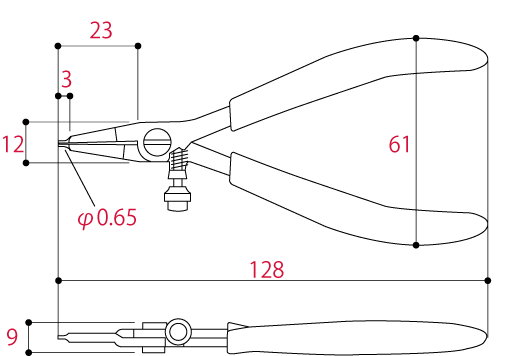

Overall lengthHead widthHead thicknessHandle widthNose lengthTip lengthTip diameter
MSE-125128129612330.6545110371
Tip diameter(mm)Usable range(mm)
MSE-1250.653~9
