Plastic Cutting Pliers w/ Jaw Opening Limitter

125mm KT-411 / 150mm KT-412 Spring

Click pictures to enlarge

Best for cutting molding gate on the curved surface.
Maximum jaw opening is adjustable with loaded stopper (PAT.).
Stopper reduces surplus movement of handles and improves work efficiency.

Specifications

Material | Alloy steel
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Edge hardness [HRC] | 58～64
Spring | Coil spring
Handle cover | PVC dipping

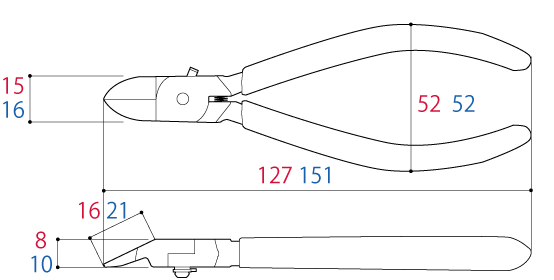

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Edge length	Weight [g]	EAN-code (4952269)
KT-411	127	15	8	52	16	80	110470
KT-412	151	16	10	52	21	120	110487

Cutting capacity (φmm)	Plastic
KT-411	5.0
KT-412	5.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
