Diagonal Cutting Pliers FIT-Type

125mm FNH-125 Spring

Click pictures to enlarge

  • For copper, iron and alminium wires.
  • Hand-fitting shape grips.
  • Stripping hole on the edge.
Specifications
  • Material | Alloy steel
  • Heat Treatment | Induction hardening on edge
  • Edge hardness [HRC] | 56~64
  • Spring | Coil spring
  • Handle cover | PVC dipping
Size[mm]Weight
[g]
EAN-code
(4952269)

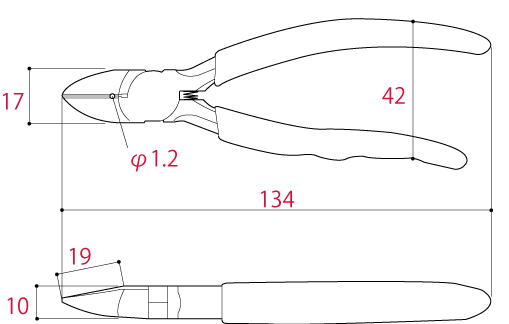

Overall lengthHead widthHead thicknessHandle widthEdge lengthHole diameter
FNH-125134171042191.2100102055
Cutting capacity (φmm)StainlessSoft IronCopperAluminumStranded copper wire [mm²]
FNH-1251.01.82.64.02.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
