Wire Rope Cutter

200mm WC-200 / 225mm WC-225 Spring

Click pictures to enlarge

  • Cutting wire rope cleanly, without becoming loose.
  • With one hand, cutting φ5mm(WC-200) or φ6mm(WC-225) of iron wire rope.
Specifications
  • Material | Alloy steel
  • Heat Treatment | Induction hardening on edge
  • Edge hardness [HRC] | 54~64
  • Spring | Volute spring
  • Handle cover | PVC dipping

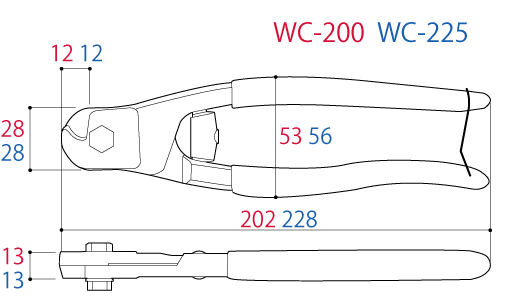

Size[mm]Weight
[g]
EAN-code
(4952269)
Order
Overall lengthHead widthHead thicknessHandle widthNose length
WC-20020228135312345108125
WC-22522828135612390113433Amazon.com
Cutting capacity
(φmm)
Wire rope (Iron)Wire rope (Stainless)
WC-2005.04.0
WC-2256.05.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
