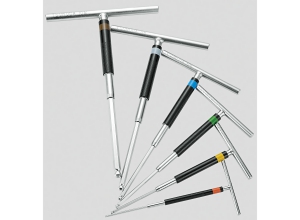

Quick Turn T-handle Hex Key Wrench Ball-End Type

Sizes across flats : 3.0~10.0mm TL-3.0B~10.0B


Click pictures to enlarge

  • T shaped handle allows quick turning.
  • Long bit reaches bolts deep inside of machinery.
  • Ball end type is exclusive use for temporary tightening.
  • Works up to 20°.
Specifications
  • Material | Alloy steel
  • Surface treatment | Solid chrome plating
Part # A
Size across flats
(mm)
BxC
Vertical length/Handle width
(mm)
D
Bit length
(mm)
Weight(g) EAN-code
(4952269)
TL-3.0B 3.0 206×90 67 75 111033
TL-4.0B 4.0 227×105 79 165 111040
TL-5.0B 5.0 248×125 89 230 111057
TL-6.0B 6.0 269×150 103 300 111064
TL-8.0B 8.0 291×175 117 460 111071
TL-10.0B 10.0 313×200 135 665 111088
Correspondance between hex key and bolts
Hex diameter across flats
(mm)
Cap screw Hex socket set screw Hex socket button head screw Hex socket countersunk head screw
1.5 M1.6 M2 M3
2.0 M2.5 M4 M3 M3
2.5 M3 M5 M4 M4
3.0 M4 M6 W1/4 M5 M5
4.0 M5 M8 W5/16 M6 M6
5.0 M6 W1/4 M10 W3/8 M8 M8
6.0 M8 W5/16 M12 W1/2 M10 M10
8.0 M10 W3/8 M16 W5/8 M12 M12
10.0 M12 W1/2 M20 W3/4 M16 M16
