Slip Joint Pliers Slim-Type

200mm SPL-200 (Naked handle) / 200mm SPL-200G (PVC dipped handle) JIS

Click pictures to enlarge

2 positions slip joint pliers. Parallel serration.
Asymmetrical jaws hold any shaped targets tightly.
Slim body is convenient even inside narrow area.
Center-cutting structure reduces 25% of cutting load.
Cross serration type : SPL-200X/200XG

Specifications

Material | Alloy steel
Heat Treatment | Oxide-free heat treatment
Edge hardness [HRC] | 47～55
Surface treatment | Nickel-chrome plating

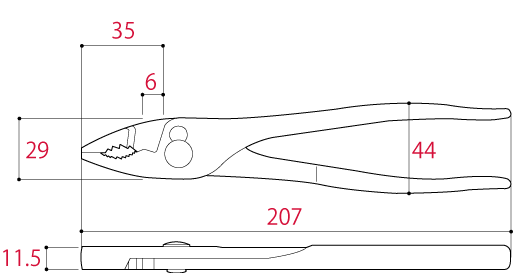

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Weight [g]	EAN-code (4952269)
SPL-200	207	29	11.5	44	35	6	260	111163
SPL-200G	207	29	11.5	44	35	6	260	111156

Cutting capacity (φmm)	Soft iron	Annealed iron	Max jaw opening
SPL-200/200G	2.6	2.6	25

Note: Do not use to cut harder wire or anything above it rated the capacity.
