Special Use and Others
mini Tool Series
No.24 Lead Wire Cutter
125mm RWC-125
Spring
Click pictures to enlarge
Picking target up with nose tip. Cutting it with tip edge.
Suitable for cutting wires inside narrow space.
Jaw inside pin guides the edge to precise position.
Specifications
Material | Alloy steel
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Edge hardness [HRC] | 58~64
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

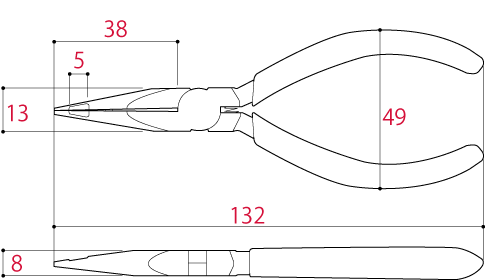

Size[mm]
Weight
[g]
EAN-code
(4952269)
Overall length
Head width
Head thickness
Handle width
Nose length
Edge length
RWC-125
132
13
8
49
38
5
70
401240
Cutting capacity (φmm)
Copper
Stranded copper wire [mm²]
RWC-125
1.0
1.25
