Power Side Cutting Pliers

150mm PW-102DG / 175mm PW-103DG / 200mm PW-104DG ECCENTRIC

Click pictures to enlarge

Eccentric structure reduces the load required for cutting to 70% compared to conventional products.
Comfortable elastomeric double molded resin grips.
Improved handle shape.

Specifications

Material | Alloy steel
Heat Treatment | Induction hardening on edge
Edge hardness [HRC] | 58～64
Handle cover | Elastomeric double molded resin grips

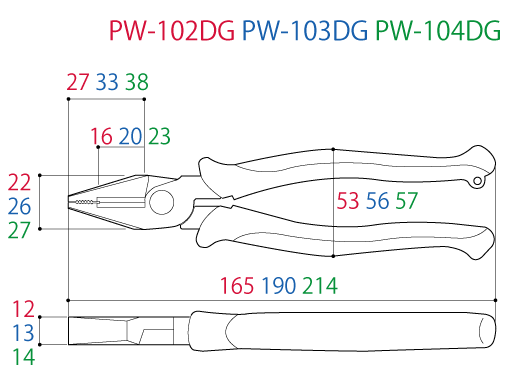

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Weight [g]	EAN-code (4952269)
PW-102DG	165	22	12	53	27	16	200	110524
PW-103DG	190	26	13	56	33	20	275	110531
PW-104DG	214	27	14	57	38	23	355	110548

Cutting capacity (φmm)	Stainless	Soft iron	Copper	IV wire [mm²]	VVF cable
PW-102DG	2.0	3.2	4.0	14	2.0x3cores
PW-103DG	2.0	3.2	4.0	14	2.0x3cores
PW-104DG	2.0	3.2	4.0	14	2.0x3cores

Note: Do not use to cut harder wire or anything above it rated the capacity.
