Long Nose Pliers and Plastic Cutter

100mm MRN-100
（MR-100 Long Nose Pliers Spring / PN-100 Plastic cutter Spring）

Click pictures to enlarge

MR-100 Long Nose Pliers

PN-100 Plastic cutting pliers

Set of small long nose pliers and plastic cutting pliers.
Essential functions for hobby use are available.

Specifications

Material | Carbon steel for machinery
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

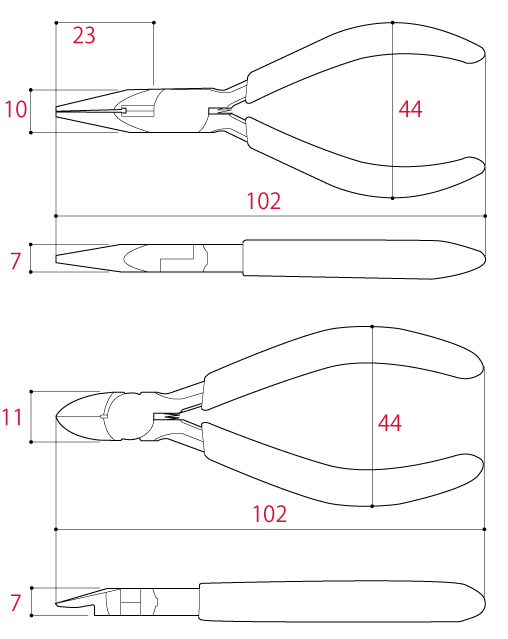

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Weight [g]	EAN-code (4952269)
MR-100(Long Nose Pliers)	102	10	7	44	23	40	430141
PN-100(Plastic cutter)	102	11	7	44	14	50	430141

Cutting capacity (φmm)	Soft iron	Copper	Stranded copper wire [mm²]	Plastic
MR-100(Long Nose Pliers)	1.2	1.6	2.0
PN-100(Plastic cutter)		1.6	2.0	4.0

Note: Do not use to cut harder wire or anything above it rated the capacity.
