Long Nose Pliers

100mm MR-100 / 115mm MR-115 / 120mm MR-120 (Previous part number : MR-125) Spring

Click pictures to enlarge

For fine works and cutting wire.
Smooth jaw version : MF-120
Smooth jaw, w/o cutting blade version : MR-115F
*Part number of MR-120 was MR-125 before. No changes on the product itself.

Specifications

Material | Carbon steel for machinery
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

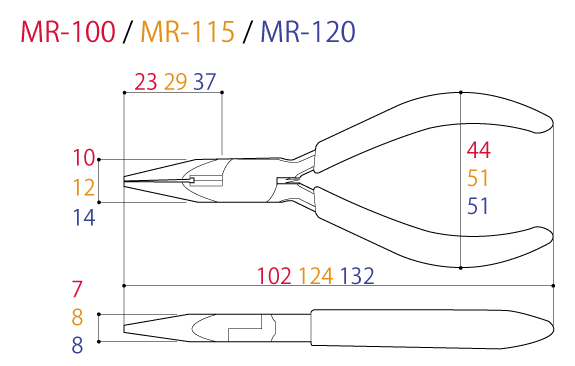

	Size[mm]						Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Nose length	Edge length	Weight [g]	EAN-code (4952269)
MR-100	102	10	7	44	23		40	110395
MR-115	124	12	8	51	29	6	65	403015
MR-120	132	14	8	51	37	8	70	403138

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass	Stranded copper wire [mm²]
MR-100	-	1.2	1.6	-	2.0
MR-115	1.2	1.6	2.0	1.6	3.5
MR-120	1.2	1.6	2.0	2.0	3.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
