Cutting Pliers

125mm MNK-125 Spring


Click pictures to enlarge

  • For assembling and maintenance of electronic devices.
Specifications
  • Material | Carbon steel for machinery
  • Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
  • Body hardness [HRC] | 42~50
  • Edge hardness [HRC] | 54~62
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils
Size[mm]Weight
[g]
EAN-code
(4952269)

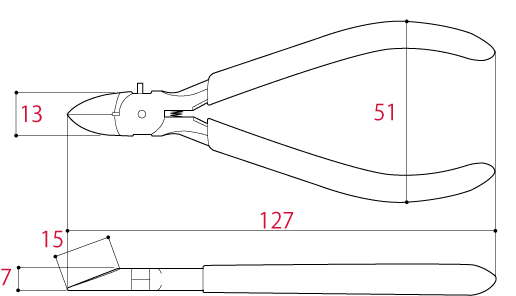

Overall lengthHead widthHead thicknessHandle widthEdge length
MNK-125127137511565401318
Cutting capacity (φmm)StainlessSoft ironCopperBrassStranded copper wire [mm²]
MNK-1251.21.62.62.03.5㎟

Note: Do not use to cut harder wire or anything above it rated the capacity.
