Edge Cutting Pliers

115mm MEN-115 Spring


Click pictures to enlarge

  • Edge on the tip of slender head is suitable for fine works.
  • For cutting the smallest target like etching parts.
  • 45° angled head is ideal for cutting protruding lead wires on printed circuit board.
  • Jaw inside pin guides the edge to precise position.
Specifications
  • Material | Alloy steel
  • Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
  • Edge hardness [HRC] | 58~64
  • Spring | Coil spring
  • Handle cover | PVC dipping
  • Surface treatment | Anti-rust oils

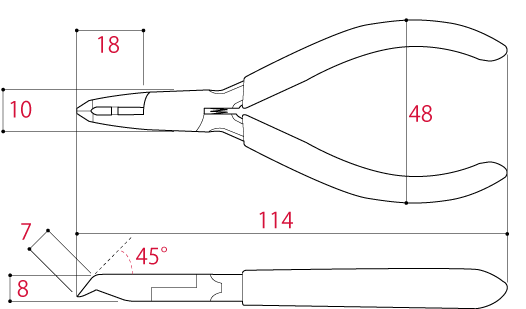

Size[mm]Weight
[g]
EAN-code
(4952269)
Overall lengthHead widthHead thicknessHandle widthNose lengthEdge lengthHead angle
MEN-1151141084818745°60401226
Cutting capacity (φmm)PlasticSoft ironCopperBrassStranded copper wire [mm²]
MEN-1152.00.91.21.01.25

Note: Do not use to cut harder wire or anything above it rated the capacity.
