End Cutting Pliers

115mm EN-115 Spring

Click pictures to enlarge

For cutting protrusions on the surface.
Suitable for building miniature models and various handicrafts.

Specifications

Material | Carbon steel for machinery
Heat Treatment | Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC] | 42～50
Edge hardness [HRC] | 54～62
Spring | Coil spring
Handle cover | PVC dipping
Surface treatment | Anti-rust oils

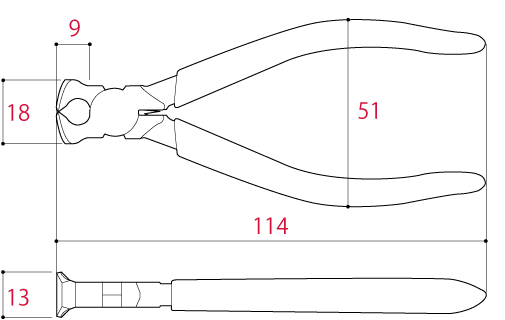

	Size[mm]					Weight [g]	EAN-code (4952269)
	Overall length	Head width	Head thickness	Handle width	Jaw depth	Weight [g]	EAN-code (4952269)
EN-115	114	18	13	51	9	70	408096

Cutting capacity (φmm)	Stainless	Soft iron	Copper	Brass
EN-115	1.2	1.6	2.0	1.6

Note: Do not use to cut harder wire or anything above it rated the capacity.
