Electric Multi-purpose Pliers

AP-06 for Insulated and Faston Terminals

Click pictures to enlarge

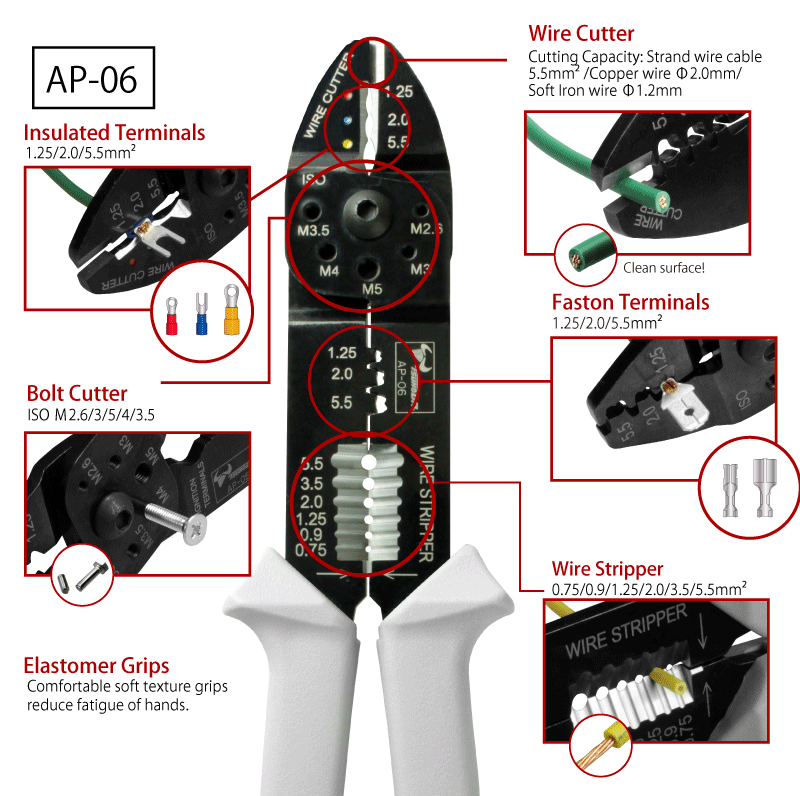

  • 5 functions for electrical installation works loaded
  • Insulated terminal crimping(1.25/2.0/5.5㎟)(AWG 16/14/10)
  • Faston terminal crimping(1.25/2.0/5.5㎟)(AWG 16/14/10)
  • Wire Cutter
  • Bolt Cutter
  • Wire Stripper
  • Comfortable elastomer grips

Electric Multi-Purpose Pliers Series

Functions AP-01 AP-02 AP-03 AP-04 AP-05 AP-06
Faston Terminals (1.25/2.0/5.5㎟)(AWG 16/14/10) - - -
Non-Insulated Terminals (1.25/2.0/5.5㎟)(AWG 16/14/10) - - -
Insulated Terminals (1.25/2.0/5.5㎟)(AWG 16/14/10) - - -
Ignition Terminals - - -
Wire Cutter
Bolt Cutter (ISO M2.6/3/3.5/4/5)
Wire Stripper (φ0.75/0.9/1.25/2.0/3.5/5.5mm)(AWG 18/17/16/14/12/10)
Specifications
  • Material | Alloy steel
  • Head hardness [HRC] | 49~55
  • Handle cover | Elastomeric molded resin grips
Size(mm)Weight
(g)
EAN code
(4952269)
Whole lengthHead widthTip ThicknessJaw ThicknessHandle width
AP-062354041553295113952
Terminals and sizesInsulated Terminals / Faston Terminals(1.25/2.0/5.5sq)(AWG 16/14/10)
Cutting capacityStrand copper wire 5.5㎟(AWG 10) / Copper φ2.0mm(AWG 14)/ Soft ironφ1.2mm(AWG 17)

Note: Do not use to cut harder wire or anything above it rated the capacity.
